280Ah 314Ah Prismatic LiFePO4 Battery Cell For OEM Solar Energy Storage Solutions

Name: 280Ah 314Ah Prismatic LiFePO4 Battery Cell For OEM Solar Energy Storage Solutions
Brand: Kingkong Batttery
Price: 39.90 USD

Wholesale 280Ah 314Ah Prismatic LiFePO4 Battery Cell For OEM Solar Energy Storage Solutions from china suppliers

Brand Name : Kingkong Batttery

Model Number : KKB-Lithium Ion Batteries-3.2V280AH

Battery Size : 174*71*207mm

Place of Origin : China

Weight : 6KG

The charging ratio : 1C

The discharge rate : 1C

Storage Type : -20~60℃

Anode Material : LFP

Application : Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric For

Electric Energy : 896 Wh

Product Name : LiFePO4 Battery 280Ah

Energy : 896Wh

Battery type : Lifepo4 Battery

Capacity : 280ah

Cycle life : 10000 times

Key words : 280Ah LiFePO4 Battery

Internal resistance : 0.18±0.05mΩ

Operating Voltage : 2.5-3.65V

Dimension : 174*71*207mm

Discharge temperature : -30~60℃

MOQ : 16 pieces

Price : $39.90/pieces 16-98 pieces

Contact Now

KingKongBattery VS Others

280Ah 314Ah Prismatic LiFePO4 Battery Cell For OEM Solar Energy Storage Solutions

KingKong batterynow have enough stock in
China/Poland EU/US/CA/UK location for the
(1)3.2V LiFePO4 cell
(2)12V LiFePO4 battery pack
(3)48V energy storage system.
It's best time to have quick shipping!
Talk Leo(Click here) to get more details

PRODUCT SPECIFICATIONS

Model	LF50	LF280	LF230
Nominal capacity	50Ah	280Ah	230AH
Typical voltage	3.2V	3.2V	3.2V
Max Charge voltage	3.65V	3.65V	3.65V
AC impedance resistance (1KHz)	≤0.7mΩ	≤0.25mΩ	≤0.25mΩ
Charging temperature	0℃~55℃
Weight	4.5KG	5.3kg	4.3kg
Dimension	13529185mm	20017372mm	17454207mm
Grade	Grade A & Brand New with Original QR Code ESG,CE,RoHS,UN38.3,MSDS,UL,IEC,ATEX,Reach,GB/T,BIS...
Cycle Times	>6000-10000 Cycle Times
Warranty	5 years warranty

Note:
Before placing an order, please verify the quantity required for your system.

* For a 48V system, you will need 16 pieces.
* For a 24V system, you will need 8 pieces.
* For a 12V system, you will need 4 pieces.
......

Suit for System:12V 24V 48V 72V 96V 108V... Solar Energy Storage System
Application:Backup power for home energy storage systems, campers, RVs, yachts, etc.

These RTS (Ready to Ship)products allow you to select the quantity and make payment directly. RTS orders will be given priority in shipping.

For any further inquiries, pleaseTalk Leo(Click here)
. I am here to assist you.

Key Features:
1.Grade A quality,brand new with original factory QR code.

2.The LiFePO4 cells come with complimentary
* Busbars * Bolts * Insulation boards

For example,if you purchase 4pcs batteries, we will include:
4 batteries/4 pcs busbars/16 nuts/4 pcs epoxy boards
If you need more, please contact us online. Thank you!

3. The busbars size:
280Ah/304Ah:90*20*2mm(cooper plated with nickel)

4. Prior to delivery, we conduct testing on all batteries for voltage, internal resistance, and capacity.

5.KingKong battery is a direct distributor for EV, CATL, LISHEN, CALB, and REPT batteries, offering fresh stock prepared for shipment.
Please feel free to reach out to us for any requirements.

Why KingKong battery is your BEST Partner?

★ Your Expert For Power Solution:
With 13 years of experience in the battery industry, KingKong battery has served over 12,000 cusTomers from 80+ countries. We have 4 overseas warehouses.Because of maintaining a repurchase rate of over 90%, an on-time delivery rate of 99.5%, and receiving 98% positive feedback rated by , we have received 's recommendation.

★ Source Factory & Direct Distributor:
We are direct distributors for EV, CATL, LISHEN, CALB, and REPT batteries.
All batteries are 100% original Grade A and brand new. We maintain weekly fresh stock with newly produced cells, ensuring long-term supply for your projects without worrying about stock availability.

★ Guaranteed Quality Service:
We guarantee 100% tested batteries, ensuring strict testing before shipment with matched voltage and IR. We welcome QC checking and online video checking before shipping.

★ Fully Warranty Service Guaranteed:
KingKong battery has self-operated overseas warehouses and repair centers in Poland and Germany, providing 100% product usage guidance and technical support. For products confirmed to have non-artificial quality issues, we offer complete after-sales service, ensuring worry-free shopping for you.

★ OEM / ODM Supported:
With an experienced team of energy storage structural and software engineers, we offer flexible customization services.Additionally, our marketing team provides one-on-one support, offering a full range of marketing solutions and services to help you expand your business in local markets.

Send an inquiry NOW(Click here)
Leo is here at your service to help you get guaranteed power.
Just like the partners below

How we guarantee TOP quality?

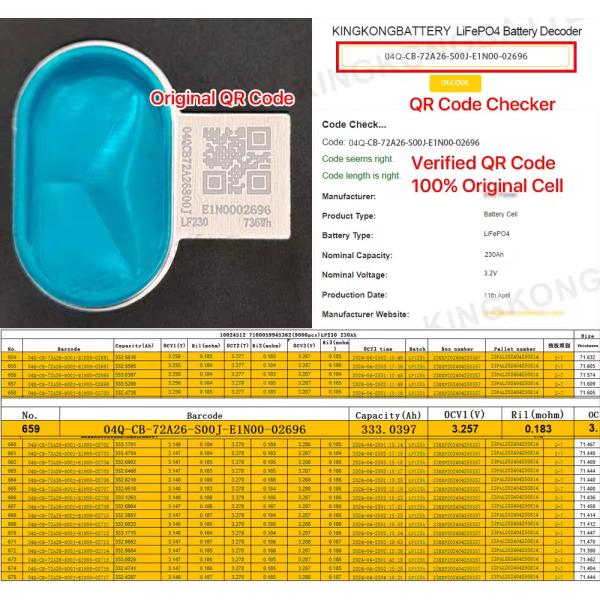

Grade A 100% Brand New with Original QR code !!!!!

QR CODE Scanner
VERIFIED QR CODE

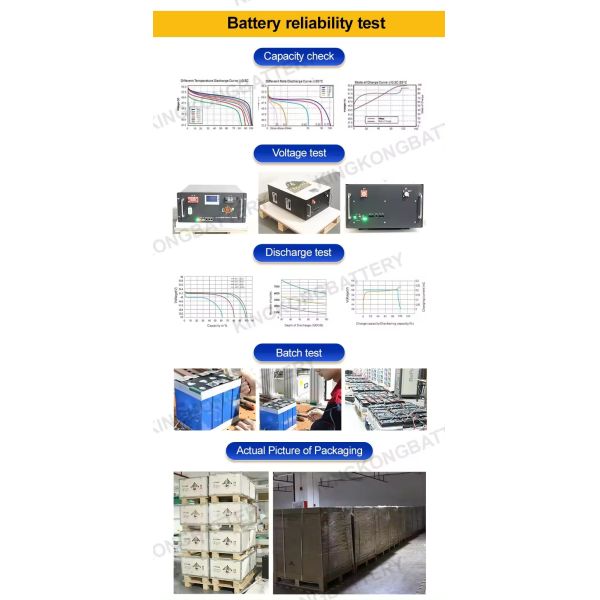

All Single battery must test over 3 times before shipping,

to make sure they are in top quality level,
with full capacity, matched voltage & internal resistance.
Please contact Leo (Click here) to learn more about our offer. Thanks.

Accessories you will also need

KingKong battery are Official distributor of EVE/ HC/ NDSD brand and Supply other safety DIY Pack accessories together Just show us what kinds of BMS you need.

Leo will quote the RIGHT BMS/KITS and accessores together.

100% technicial support

100% after-sales support

Talk Leo(Click here) to get more details

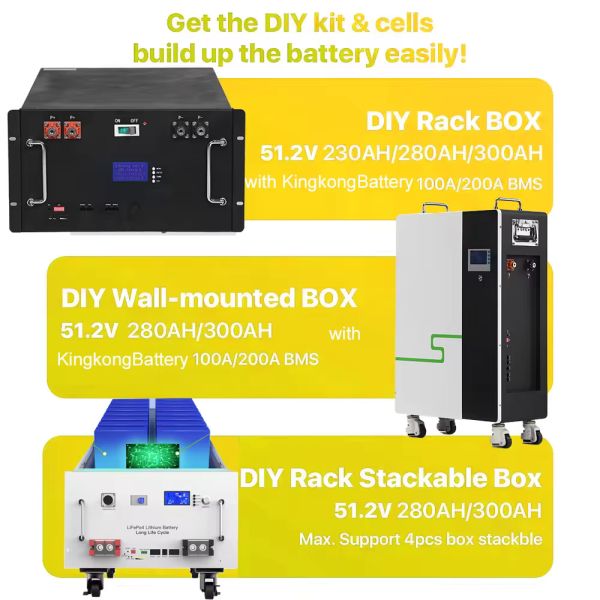

DIY Battery Box

The Battery case includes the following accessories. Smart BMS with LCD dispaly and BT Kits
1.KingKong battery 16S200A smart BMS with BT 2.Active balancer(Optional) 3.DC breaker(Optional) 4.LCD dispaly 5.Shell, Front panel, Cover plate	6.Handle . 7.Insulation board 8. Charge and discharge connector 9.Screws & flexible busbar 10.USB-485 communication cable 11. Inverter communication cable

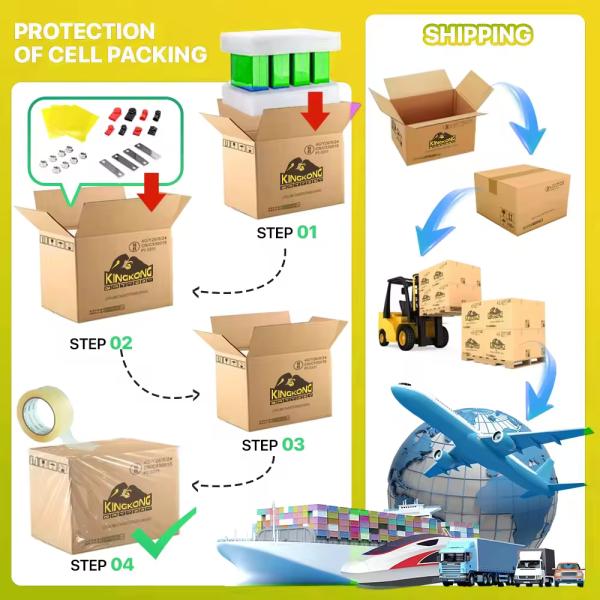

Packing & Shipping

* Use high hardness custom sponge to strengthen the battery. * 5 layers of dangerous goods export corrugated carton. * Positive and negative with insulation. * We will label test data on each cell before delivery. * If cusTomer have requirement, we can provide Wooden Packing for shipping.
About the shipping
1	EU Address	EU stock:3~7 days after delivery	By Express or Truck (DDP, including custom clearance, all the tax fees and door to door service)	The tracking will be update after pick up by local express.Usually it will take around 20-30 days after delivery.
1	EU Address				China stock:40~60 days after delivery	By Sea/Train + Local express (DDP, including custom clearance, all the tax fees and door to door service)
2	USA Address	USA stock:3~7 days after delivery	By Express or Truck (DDP, including custom clearance, all the tax fees and door to door service)	The tracking will be update after pick up by local express.Usually it will take around 15-25 days after delivery.
2	USA Address				China stock:35~55 days after delivery	By Sea + Local express (DDP, including custom clearance, all the tax fees and door to door service)
3	DDP service for other countries: We also haveDDP servicefor some other countries likeCanada, UK, Australia, Philippines, etc. More detail information, pls click here to contact us to get theDDP price.
4	CIF/FOB service for Rmoved Countries: If there is not DDP service for some removed countries, we also haveCIFserviceorFOB service for you to choose.
5	Completed Certificate: We have completed certificate of shipping, such as,MSDS, ROHS, CE, UN.38.3and Certification for Safe Transport of Goods, etc.
6	Your own shipping forward: if you have your own shipping forward, we can also arrange that. Just send us your forwardaddress and phone number,we will send to your forward address.
Noted: * For ordering from China warehouse client: Local express will be updated only after the goods arrive at European ports and customs clearance. If you want to ask about the progress of the ship, you can contact us in the message ,we will ask the freight forwarder about the progress.* If your countries that do not appear in this table, Please click here to consult us for freight charges One thing shold be clear! * Please tell us which shipping method you prefer? Sea/Air/Express? And send us your full delivery address when you send your inquiry so that we can check the total quote directly for you. Send an inquiry NOW(Click here)

FAQ

DIY battery pack must get the cells balanced (same voltage )before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detected voltage/resistance/appearance and other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means batteries have no problem, does not provide return nor refund. If you found problems you can contact us for return or refund.Battery can only be unused(the electrode intact, no welding, no wear, the appearance good)to provide return. Any return behavior buyers need to be responsible for shipping fee.

1).Warranty period:5 years(from the date of successful delivery),if the single battery capacity less than 80% initial capacity,take the test pictures or video to us,we will replace it or give satisfied solution.
2).If any miss or damaged for the shipping. Please contact us firstly, then send us the picture or video to check. In case of
lossof cargo or the battery is damaged and can not be used or there is a greater risk of use,we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.

3).These situations not provide return nor refund
1. After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.

Tips:
* These products are prototype batteries without protection board, you need to purchase a match one! Pls click here to consult us.
* please consider before taking orders, place order means you have agreed. thank you for your cooperation!
